how to tell left from right torque arm???

Uh, I removed my entire rear suspension. (67 250s) to refurb.

I did not know the thrust/torque arms are driver and passenger specific. Only when reading the Haynes did I see this note.

How can I tell?

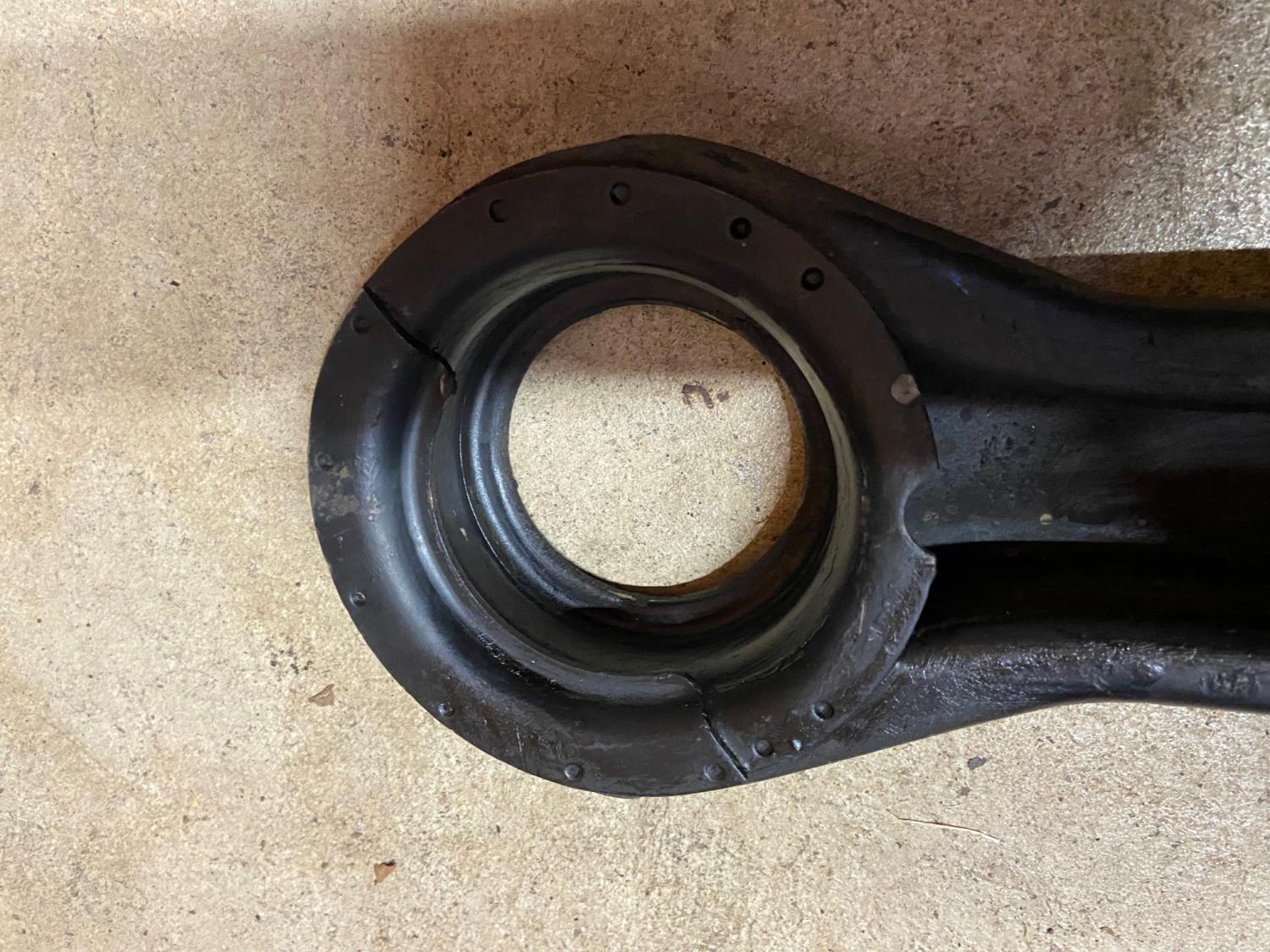

The only really obvious difference is in the front. There is a half riveted circle. See pics. Should these parts face the outside of the car, or the inside of the car.

Any other ways to tell?

I can't reinstall until I know!

Thanks.

Attached Thumbnails
how to tell left from right torque arm???-img_3444.jpg   how to tell left from right torque arm???-img_3445.jpg   how to tell left from right torque arm???-img_3446.jpg
Reply With Quote
  #2
Old 03-28-2022, 08:36 PM
Registered User

Join Date: Feb 2011
Location: Modesto CA
Posts: 4,185
The difference is in the orientation of the spring seats, which in your example appear to be bolted on, and can be rotated. A top view would be helpful.
Reply With Quote
  #3
Old 03-29-2022, 05:38 PM
Registered User

Join Date: Dec 2021
Posts: 19

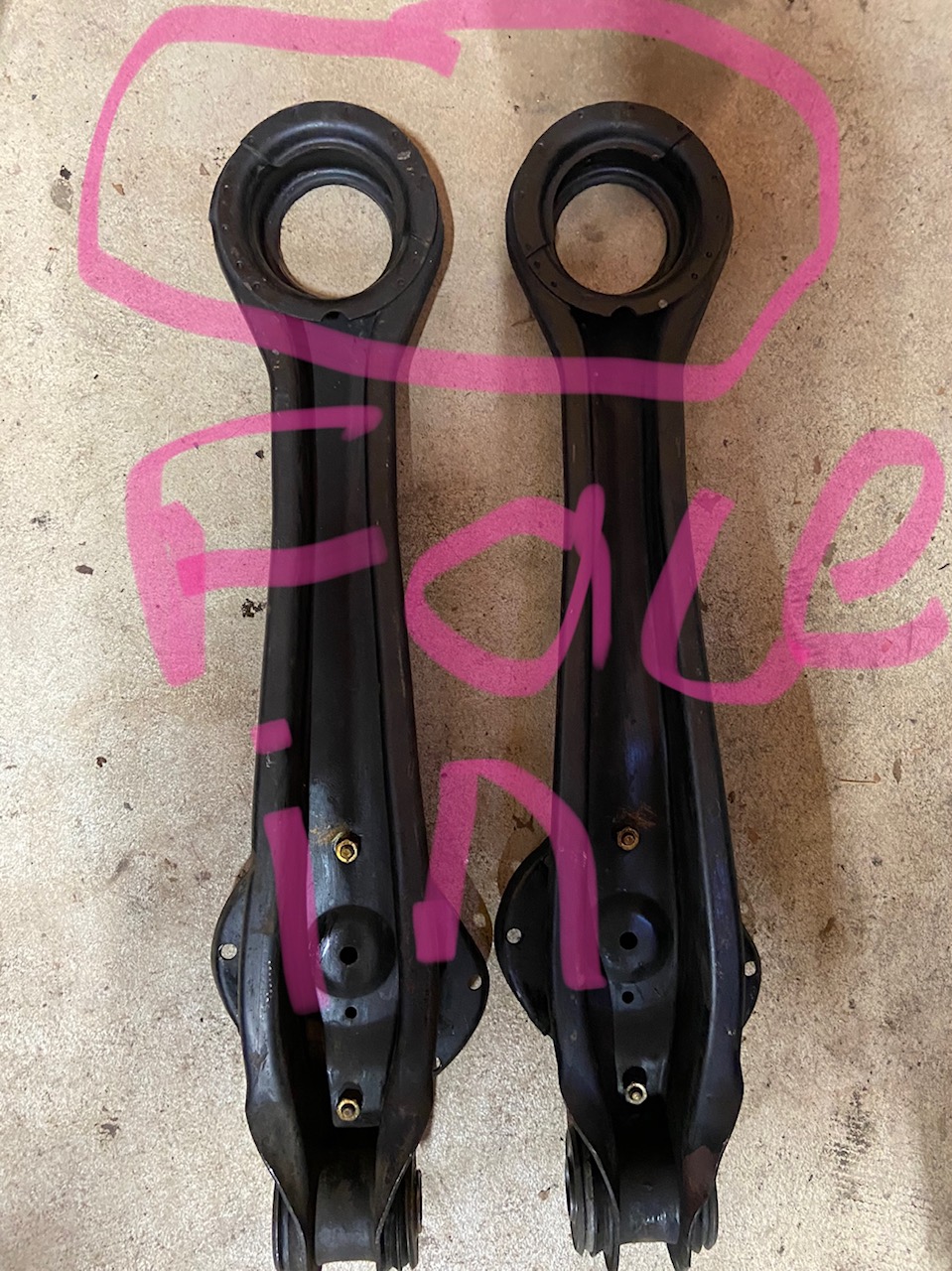

I confirmed that the half riveted on pieces face IN.
Reply With Quote
  #4
Old 03-29-2022, 06:00 PM
Registered User

Join Date: Feb 2011
Location: Modesto CA
Posts: 4,185
Quote:
Originally Posted by BrownBenz View Post
The only really obvious difference is in the front. There is a half riveted circle. See pics.
Quote:
Originally Posted by BrownBenz View Post
I confirmed that the half riveted on pieces face IN.
1) Black parts photographed against a light background become devoid of detail; the exposure is determined by the brightest area in the pic.
2) No rivets are visible. The mount cup is resistance/spot welded to the arm.
3) The photos are all of the bottom side of the arms.

Reply With Quote
