#496
05-17-2014, 02:40 PM
|
||||
|
||||
|
Quote:
I threw a wobbler I stamped about the garden singing the 'uckety uckety uckety bastard git **** song (A baby who doesn't want to play anymore throws teddy out of the cot)
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior  Don't leave that there - I'll take it to bits!
|
|
#497
05-18-2014, 08:49 AM
|
|||
|
|||
|
My kid throws everything out of the cot...diaper and all.
My w124 has that same spot forming, plus a big hole behind the front wheels where the windshield drains dump dirt and tree debris. Might want to poke around up front if the 201 shares that design. Good patch BTW!
__________________
05 E320 CDI 99 SL500 02 530i 82 240D SOLD 83 240D Euro 4spd SOLD 86 300D Euro Auto SOLD
|
|
#498
05-18-2014, 02:58 PM
|
||||
|
||||
|
That reminds me of a few years back - the twins used to do that with their nappies (diapers) - one would take it off and giggle; you'd reach over and rectify the problem to find the other one had done the same; then you'd rectify that problem to find that the first one had done it again...
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits!
|
|
#499
05-25-2014, 08:29 AM
|
||||
|
||||
|
Getting there
No welding on a Sunday! However =>
Cleaning up the intake manifold is fun
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits!
|
|
#500
05-25-2014, 08:31 AM
|
||||
|
||||
|

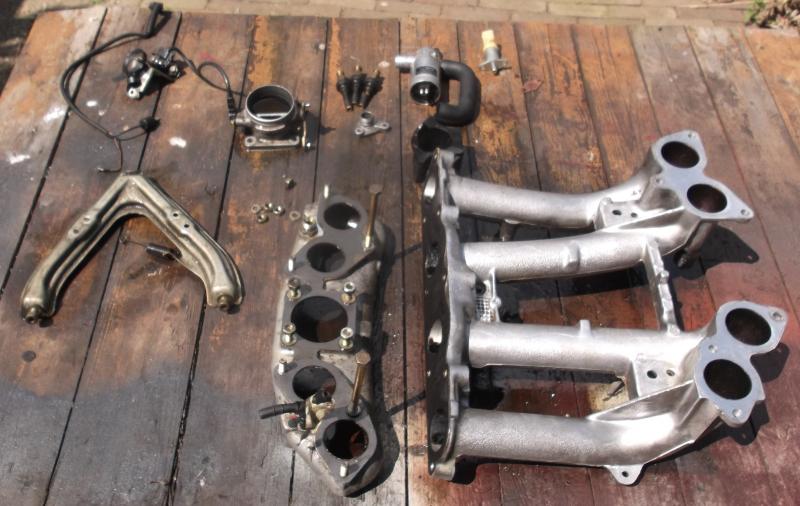

More intake manifold
The area next to the injectors are really grotty - caked in burnt oil deposits. As usual undergone to the rescue Does anyone remember where I put that 4th injector? It takes a long time to get more than a decade of gunk out of an inlet / intake manifold But I'm getting there - the lower part that holds the throttle valve assembly was black and now it is... Gasket for the manifold to go up against the pre-warming heater is 102 141 27 80 Gasket between manifold and lower section that holds throttle valve assembly is 102 141 28 80
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits! Last edited by Stretch; 05-25-2014 at 11:18 AM. Reason: Added more pictures
|
|
#501
05-25-2014, 01:07 PM
|
||||
|
||||
|

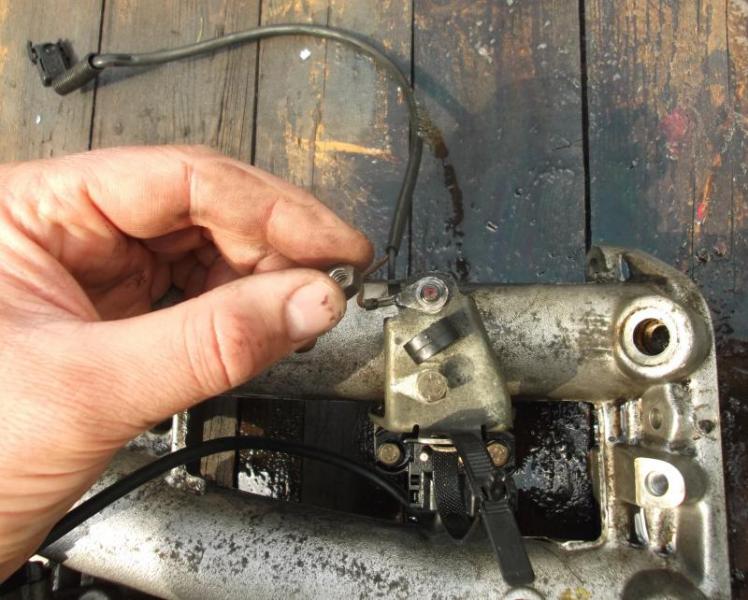

The famous air idle control valve is
a strange thing

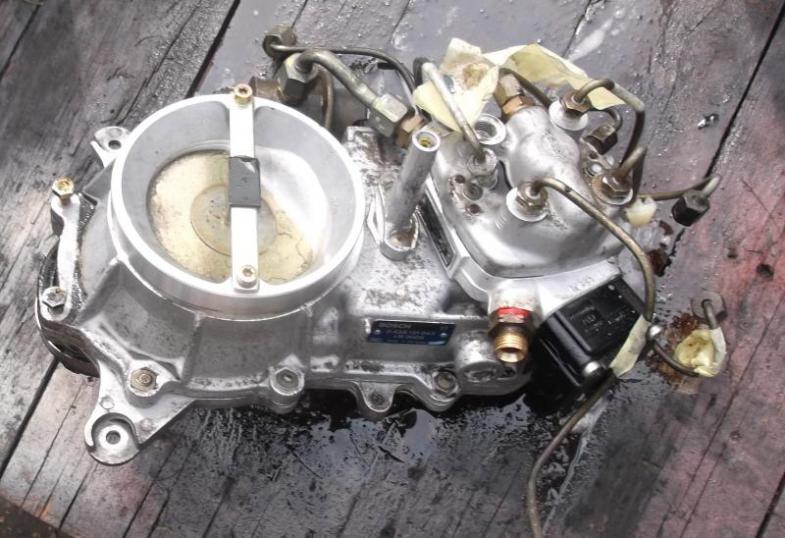

As is the mixture control unit Engine degreaser a go go - don't let it all get too too wet!
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits!
|
|
#502
05-25-2014, 01:10 PM
|
||||
|
||||
|

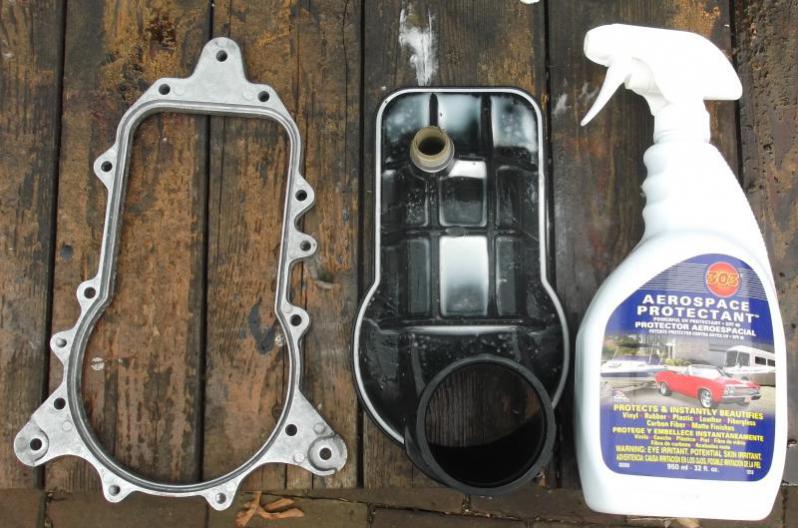

Removal of air guide from mixture control unit
I've been wondering what's inside
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits!
|
|
#503
05-30-2014, 01:44 PM
|
||||
|
||||
|
Almost a milestone day!
Almost finished the welding on the right rear wheel arch - I can't get my head under the car - can't raise the car any higher - so I have to finish it off on a lift. Luckily there's a new car club just opened locally so I can actually finish it off.

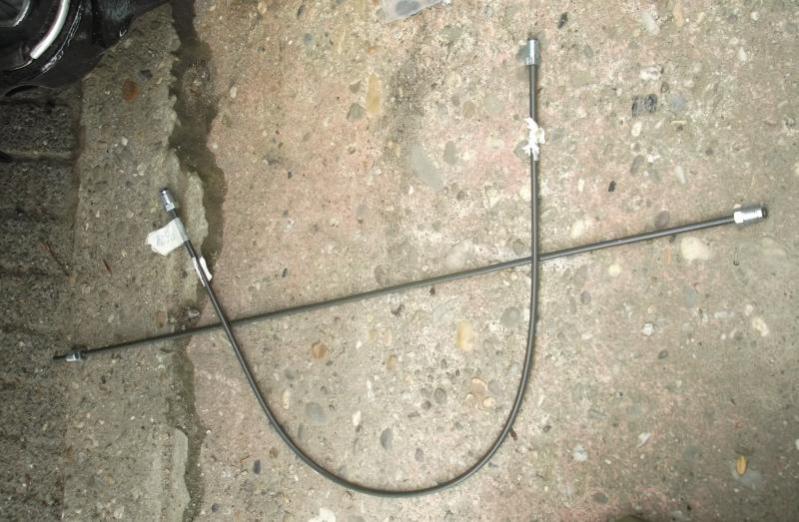

I got so excited I went and grabbed #2 daughter's mini skate board (that is no use for learning to skate on - far too short a board) and used it to slide the sub frame under the car... ...only to remember that I need to fit the anti-roll bar and the rear brake lines and the fuel lines... I got these brake lines ages ago from a place in Germany that was way way cheaper than the dealer. You have the straighten them from the envopak... ...unfortunately one is way way too long => As you can see I had a bloody nightmare - it is well wobbly - I might change it for another line from the dealer. Here's the vent valve for the fuel tank Fitting the rubber cover before fitting the fuel lines!
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits!
|
|
#504
05-30-2014, 01:48 PM
|
||||
|
||||
|
Trial fit for the sub frame!
Sodding Lemforder!
Why? Why? Why? Sodding star shaped bolt head. I don't have those sockets. Bolts only done up finger tight - which is just as well because I think they'll have to come out to get the suspension arms fitted.
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits!
|
|
#505
05-30-2014, 03:00 PM
|
|||
|
|||
|
I'm pretty sure I used a 6pt socket on those subframe bolts. I do not think I own those sockets either and I for sure used that style bolt with my sportline subframe mounts.
__________________
68 280SL - 70 280SL - 70 300SEL 3.5 - 72 350SL - 72 280SEL 4.5 - 72 220 - 72 220D - 73 450SL - 84 230GE - 87 200TD - 90 190E 2.0 - 03 G500 Nissan GTR - Nissan Skyline GTS25T - Toyota GTFour - Rover Mini - Toyota Land Cruiser HJ60 - Cadillac Eldorado - BMW E30 - BMW 135i
|
|
#506
05-30-2014, 03:52 PM
|
||||
|
||||
|
Quote:
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits!
|
|
#507
05-31-2014, 03:04 PM
|
||||
|
||||
|
I'm going to have to bit the bullet and get some more tools
The new TRW bolts for the suspension need triple square M10 drivers - I give up - I need to get some of these "modern" tools.
So torx sockets and triple squares are being sourced. ################### After spending ages getting the valve cover repainted I thought I'd cut to the chase and buy a good second hand air filter assembly. I thought I found a good one on marktplaats. The picture was good - the description was great - it specifically said no rust... ...when it arrived the packaging was great - very neatly done - looked like it was a good buy... ...waa waa oomps - slightly rusty a bit scratched and filthy. Here's the filter cover that I wanted to be so lush => A bit of degreaser shows the goo stuck to the top of the cover Lots of elbow grease with polish got this far In the end to cut down on elbow grease I used a bit of thinner to remove the goo I still need to finish this off but it does get good in the end
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits!
|
|
#508
06-01-2014, 08:37 AM
|
||||
|
||||
|
Wow, I take my eyes away from this thread for a few weeks and suddenly your daily driver is all taken apart! Can't say that wouldn't be the case with me, either...
__________________
[GONE] - 1995 Mercedes E300 Diesel - 130k miles - Smoke Silver (702) over Mushroom leather (265) - Bladder blasting, coast-to-coast work machine.
|
|
#509
06-01-2014, 11:38 AM
|
||||
|
||||
|
Quote:
Is it on the other side of the world?
__________________
1992 W201 190E 1.8 171,000 km - Daily driver 1981 W123 300D ~ 100,000 miles / 160,000 km - project car stripped to the bone 1965 Land Rover Series 2a Station Wagon CIS recovery therapy! 1961 Volvo PV544 Bare metal rat rod-ish thing I'm here to chat about cars and to help others - I'm not here "to always be right" like an internet warrior Don't leave that there - I'll take it to bits!
|
 |
