Vacuum Line Filter
Yesterday I finally decided to add the inline filters to the Vacuum line at the fuel shut off, as a protection incase the shutoff diaphram leaks engine oil.

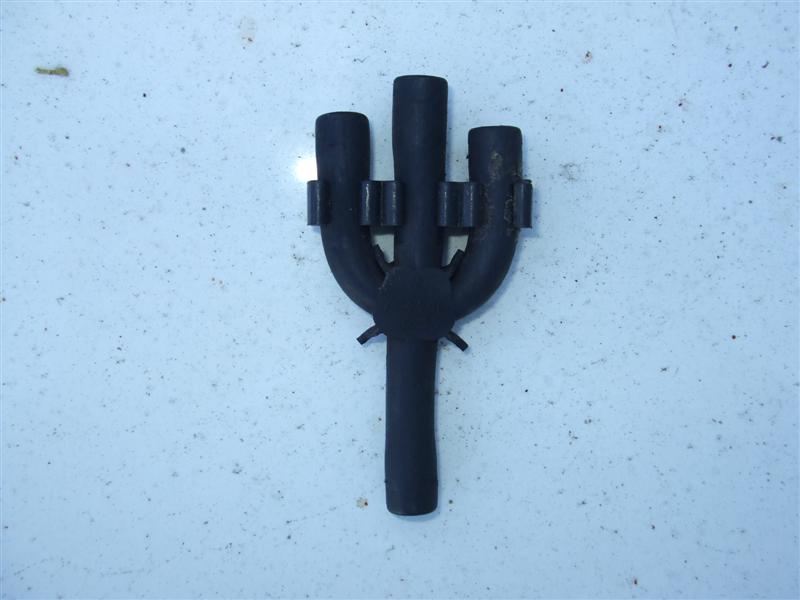

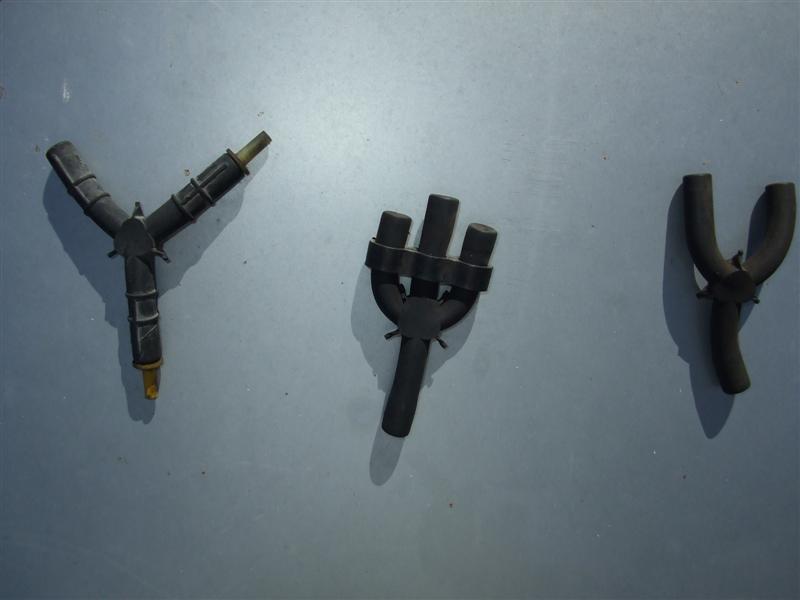

Also added one from the large black vac line going to the brake booster. this filter takes care of the air/heat pod under the dash, the door lock system and the fuel shutoff. I read WHUNTER post on this subject a while back, and finally got motivated to get er done. I scrounged through all my rubber connectors, and came up with what looks pretty good. a couple rubber elbows makes the bends smoother. the center rubber tri piece of the 3 I have pictured is the one I used. It has a plastic clip to hold the 3 together. not sure what model I pulled it off of at PNP. most I have seen are the type on the left. so we definately do not want engine oil in the vacuum system. This is on the 85 Cali, with the simplified Vacuum system  . Charlie
__________________
there were three HP ratings on the OM616... 1) Not much power 2) Even less power 3) Not nearly enough power!! 240D w/auto Anyone that thinks a 240D is slow drives too fast. 80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff We are advised to NOT judge ALL Muslims by the actions of a few lunatics, but we are encouraged to judge ALL gun owners by the actions of a few lunatics. Funny how that works
|
|
#2
11-19-2009, 02:50 AM
|
||||
|
||||
|
If you look inside W123 cabins, the central lock vacuum lines have these rubber fitting holders.
Neat idea, I might grab a few myself.  I already have the inline filters.
__________________
http://farm8.staticflickr.com/7271/7...144c3fc1dc.jpg
|
|
#3
11-19-2009, 03:04 AM
|
|||
|
|||
|
Quote:
 for the life of me, I couldn`t think where I got these.I might have to replace the elbows, these are kind of iffy. next time Iam by a dealer, see what they have. Charlie
__________________
there were three HP ratings on the OM616... 1) Not much power 2) Even less power 3) Not nearly enough power!! 240D w/auto Anyone that thinks a 240D is slow drives too fast. 80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff We are advised to NOT judge ALL Muslims by the actions of a few lunatics, but we are encouraged to judge ALL gun owners by the actions of a few lunatics. Funny how that works
|
|
#5
06-15-2011, 10:36 AM
|
||||
|
||||
|
any clear fuel filter will suffice. it's just a visual indicator of oil in the lines.
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread "as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do! My drivers: 1987 190D 2.5Turbo 1987 190D 2.5Turbo 1987 190D 2.5-5SPEED!!!  1987 300TD 1987 300TD 1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
|
|
#6
06-15-2011, 10:54 AM
|
|||
|
|||
|
I picked these up at a Good-Guys Street Rod swap meet for a $1.00 each.
Just a cheap inline fuel filter. For the rubber elbos and other vacuum line connections, I sourced them from PNP. Charlie
__________________
there were three HP ratings on the OM616... 1) Not much power 2) Even less power 3) Not nearly enough power!! 240D w/auto Anyone that thinks a 240D is slow drives too fast. 80 240D Naturally Exasperated, 4-Spd 388k DD 150mph spedo 3:58 Diff We are advised to NOT judge ALL Muslims by the actions of a few lunatics, but we are encouraged to judge ALL gun owners by the actions of a few lunatics. Funny how that works
|
|
#7
06-15-2011, 08:34 PM
|
||||
|
||||
|
You installed the one connected to the main vacuum line backwards.
__________________
-diesel is not just a fuel, its a way of life-  '15 GLK250 Bluetec 118k - mine - (OC-123,800) '17 Metris(VITO!) - 37k - wifes (OC-41k) '09 Sprinter 3500 Winnebago View - 62k (OC - 67k) '13 ML350 Bluetec - 95k - dad's (OC-98k) '01 SL500 - 103k(km) - dad's (OC-110,000km) '16 E400 4matic Sedan - 148k - Brothers (OC-155k)
|
|
#8
06-15-2011, 09:02 PM
|
|||
|
|||
|
Both of them have the arrow pointing to the firewall. I don`t think it makes much difference in this situation. they are only there to let us know if oil is getting into the system from the vacuum pump and/or the vacuum fuel shut off thingy.
Best described as an inline Tampon. Charlie
