Hey all, Im new hear and to the MB world. I posted this on another board with almost no help, then the local Mercedes guy pointed m to here. And in doing searches on here compared to elsewhere this looks like the place to get answers. I read a bunch of old posts on this subject and got alot of good info, but still couldnt answer my quetion. Heres what I posted. Im mainly asking about the lip as the other questions were covered. ( lohttp://en.allexperts.com/q/Mercedes-Benz-repair-822/Belts-pulleys-etc.htmtsa info here )

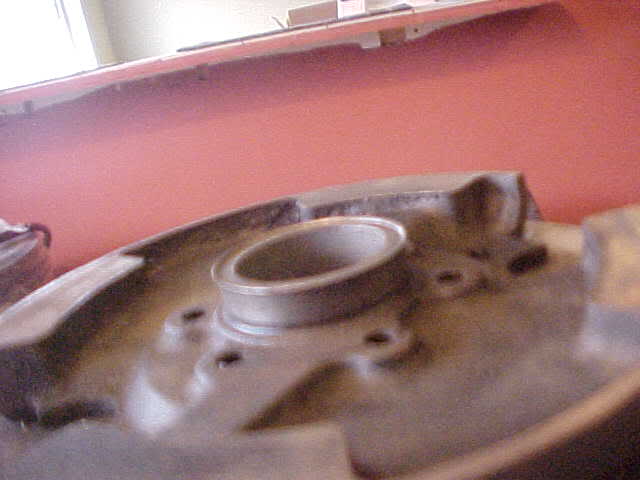

Hello all, noob here. I just bought an 82 300SD, I got it for a steal because the harmonic balancer fell off on the previous owner. The engine starts and runs fine so I think it is a really easy fix. Just a coule questions. Has this ever happened to anyone, why would it? Also there is a lip around the outer edge of the area the goes into the oil seal area. it is beveled out and sharp. I don't know whether this is suposed to be there or if it is there as a result of some kind of wallowing action that occured when the pulley came off. Here is a pic to be a little clearer. Sorry for the quality, my cam lacks a macro feature.

Attached Thumbnails



There should be dowel pins held in the balancer that locate it in relation to the crankshaft. You can put it in the right way and the wrong way (180 degrees off), both are possible. The two positions would be TDC w/ both valves closed, and TDC w/ exhaust closing and intake opening. Not sure which is correct, I'd have to pop my valve cover.

It may have come off if at some point the big ass bolt with the 27mm head that holds on the balancer and main pulley loosened or came out. Perhaps it was installed w/o the dowels and permitted to slip on the crankshaft. Since the main pulley that drives the water pump is mounted to the balancer, this ain't so ideal. Don't know how this pickle arrived, please explain in more detail and picture the balancer & shaft from both ends if yer able.

Putting it back on (after dowels are replaced if missing- see a machinist) means identifying the proper position, pulling radiator, shroud & fan, water pump pulley & sticking a mirror down there to see the crankshaft end. Heat the balancer to an honest 250 F, slide on w/ hot mitts, rotate till the dowels slide in & check work w/ a mirror. Work quick but not in a hurry, be prepared to repeat till correct. Don't muscle it in. Torque for the bolt is 240-260 ft lb but check to be sure.
