Mercedes Workshop Manual DVD

[Billie]

I bought this mercedes / smart wis asra epc workshop service shop repair manual dvd. I am having a lot of troublke trying to install it and the vendor is not helpful at all.

Does anyone have any experience and able to help?

[Mike D]

Which operating system are you using? Many of those DVD's use Flash to run their files. Unfortunately, Flash is no longer being supported by Microsoft.

Usually the individual files are in a PDF format. If so, then you can open them individually. You will need to make an index for the files. That is what I had to do when I installed Windows 10.

[Scutch]

I just double-checked. I went into a folder called PROGRAM on the Second disk. Then I went to the Welcome.html file, held the shift key down and right-clicked on the file. This allows you to see an "Open With" option in your menu. I chose Internet Explorer, the older browser on my Windows 7 machine. That opened the file and allowed me to see the menus and options and plays the content like it is supposed to. As I remember, you need Windows 7.

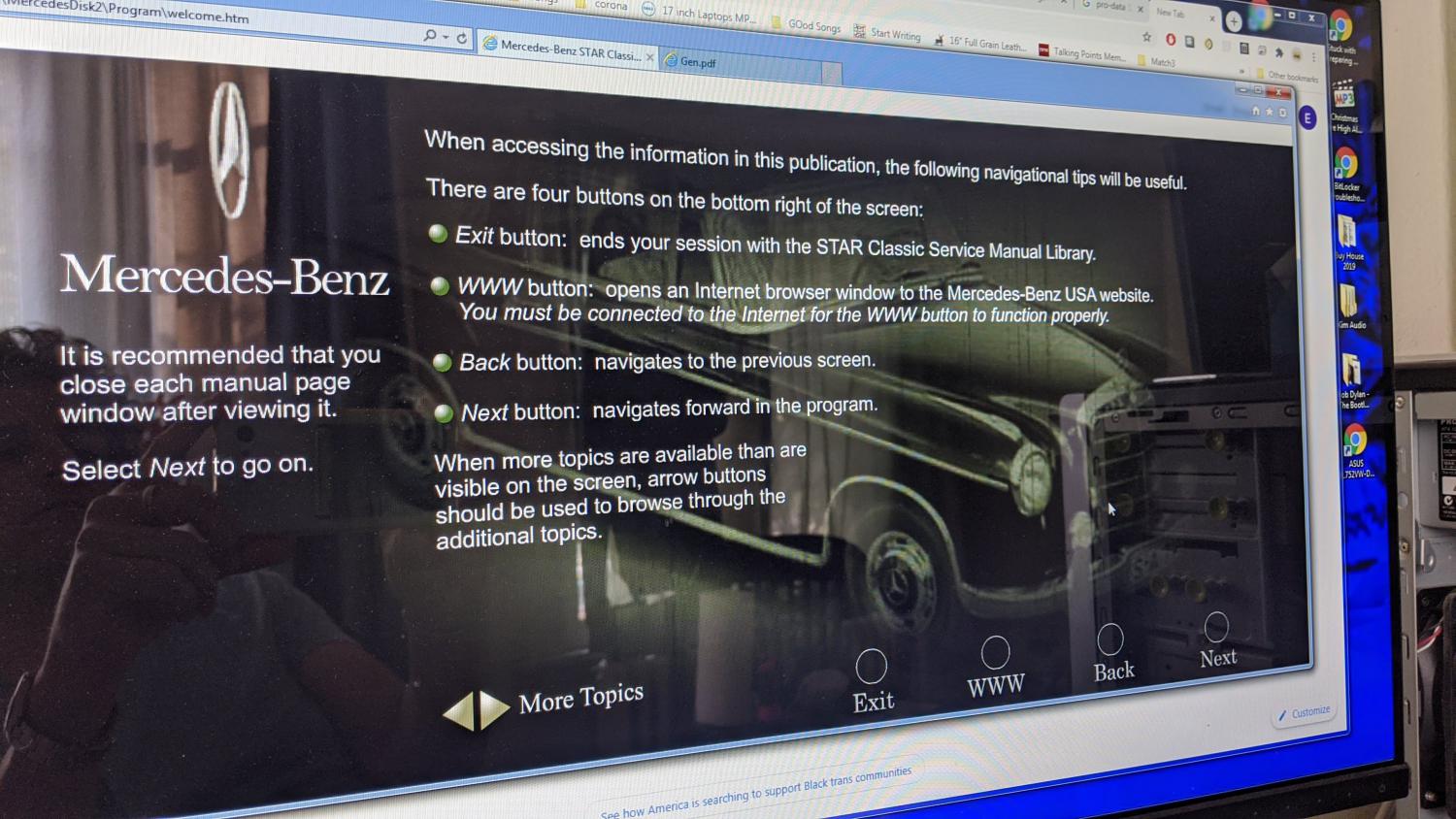

This is what it should look like with moving graphic menus.

[Billie]

I tried to load it per the instruction the vendor supplied on 2 different lap tops, one a Windows 7 and the other a Windows 10. He has a 4 Stage process and all works fine through the first 2 stages, however, stage 3 is not understandable in that what he says to do just freezes the screen.

I am supplying a link where I Purchased it: https://www.ebay.com/itm/Mercedes-Smart-WIS-ASRA-EPC-Workshop-Service-Shop-Repair-Manual-4-DVD-BOX-SET/383494378955?fits=Year%3A1993%7CMake%3AMercedes-Benz&_trkparms=ispr%3D1&hash=item594a0bd5cb:g:sqYAAOSwVRNfNkEV&enc=AQAFAAACcBaobrjLl8XobRIiIML1V4Imu%2Fn%2BzU5L90Z278x5ickkxFtV7J5P58ubuVigtBH%2Fe%2FJaV0ZklzVIUQSs 3G5Tb6EPfx9O9idkssCpgx9yFEW6MVVt6z%2BIcPkc0BNd9X%2BzPCkXC53X%2B69RWxK%2FXVyqo2MdR0uXxWh5AGnXYSdmCxQF HhQ6w3SHXGXCHXZ%2FgwKtZv%2B45RBp7tbcmAwGvMcdme99DR32qWGxg4R%2Bs1jPnXqNAwVnHk2b2MwHRas0eVDzeaK85ltQ3w W5daqkCT3zJkw1NNBmdnXWNXQEe9lH%2BbmOpKSLOd%2B6QfNZD%2BjPpWkUTTrKVh%2Fl%2F1iuH9zEPG71J9x7wZ6pyHDpiwQN jHWMfm6Fvbtlpo5W5WBz6da1TnSR%2FnwWldWi5BFMxiwgZy0PCD%2B6eiBdhp87bIOsfCFBegHO3fPAuv1%2FyiOoi1sochrnqB rzRp5DwMyTW%2F2tA6bHRdqS3s7Em7bT4LZDVl5k4teLwmgPR66m%2FRma7HqlXecGB8%2BTagp7AqI3WY44kdJRdG81fqr25Tma TeaIR5E47QSnBbrTtG%2BFI9Mm7ISzMj2%2B0PrWjxAdaW6eVRnqA2V%2F9pxOtZ1Ff1aAPK4OWKYmU%2BZiwHL%2B%2FTL8WVVG bH9%2FLrwKG6p2Hi8JZznQHUiUvG6KCQZCrwAEIIsVY7Jbaeo21Qe51BniF8%2Fw%2FIpLWarPdAKWla5oBsiGZgukmpwxAIL4Pk Xd%2B21xbOeT50pPTuV1wQL2HgCocvfPpwjp0cxhJVXqyVOzsxYlHSOULiH3O9kukyFiZ9eGRWpdeRLimSslq4Ww1xekkwq5qZZP c5oK5RZ2Ig%3D%3D&checksum=383494378955dffda01e652c447593f97899dec77112

[Tony H]

I had to do the same thing. It does not work on an old XP PC I still have either.

Originally Posted by Mike D

Which operating system are you using? Many of those DVD's use Flash to run their files. Unfortunately, Flash is no longer being supported by Microsoft.

Usually the individual files are in a PDF format. If so, then you can open them individually. You will need to make an index for the files. That is what I had to do when I installed Windows 10.

[Billie]

I tried it on a laptop with Windows 7 and a new laptop with Windows 10 and I have not been able to get it to do anything onb either. Tony, If you findally got it loaded, maybe you can give me some instructions.

[Tony H]

Try EMY_vol2_2/Program/pdf/wm/280

[Jbyron]

I was never able to get it to work either. Vendor was not helpful. I paid by credit card and got a full refund.

[Tony H]

I bought mine from the Classic Center about 20 years ago. Worked for a long time then quit working even on the same PC it had worked on before.

[cornemuse]

Originally Posted by Tony H

I bought mine from the Classic Center about 20 years ago. Worked for a long time then quit working even on the same PC it had worked on before.

Exactly my experience, , ,


From Mike D

Usually the individual files are in a PDF format. If so, then you can open them individually. You will need to make an index for the files. That is what I had to do when I installed Windows 10

Care to share?

[Mike D]

Originally Posted by cornemuse

Exactly my experience, , ,


From Mike D

Care to share?

Won't allow me to attach as a file. You'll need to add the spacing as required.

M110 service manual


00-005 Instructions 00-010 Identification
00/015 Technical data 01-001 Engine and model survey
01-010 Compression check 01-015 Cylinder leakage
01-020 Cylinder bores 01-025 Oil consumption
01-030 Engine R&R 01-040 Engine venting (crank case)
01-110 Cylinder bore and hone 01-120 Block machining
01-130 Main oil ducts 01-220 Trans adapter plate
01-310 Oil pan R&R 01-415 R&R cylinder head
01-416 Head temp sensors 01-418 Head surfacing specs
01-420 Pressure test head 01-470 R&R cam housing
01-471 Cam& housing specs 01-472 Cam housing facing specs
01-490 Head/housing illustration 03-310 Connecting rod bolts
03-313 Con rod repair 03-316 R&R pistons & specs
03-318 Machine crank 03-320 Remount crankshaft
03-324 Replace front seal 03-327 Replace rear seal
03-330 R&R pilot bearing 03-340 R&R dampener
03-344 Balance dampener 03-345 TDC transmitter
03-350 R&R crankshaft gear 03-410 R&R flywheel
03-420 Machine flywheel 03-430 Replace ring gear
03-440 Balance flywheel 05-210 Adj. Valves
05-212 R&R valve adjusters 05-215 Camshaft timing
05-220 R&R camshafts 05-225 Cam journal grind specs
05-230 R&R rocker arms 05-250 R&R valve springs
05-260 Check valve springs 05-270 Replace stem seals
05-280 Machine valves 05-285 R&R valve guides
05-290 R&R Valve seats 05-291 Machine valve seats
05-310 R&R chain tensioner 05-320 Replace timing chain
05-330 R&R tensioner rail 05-340 R&R slide rails
05-410 Oil pump drive gear 05-415 Intermediate gear shaft
05-432 R&R intermediate wheel 05-440 R&R guide wheel
05-450 R&R distributor housing 05-490 Timing components

07_2-090 through 07_2-194 is Solex 4A1 information.

07_2-210 Test fuel pump 07_2-212 Fuel pump R&R

[Tony H]

I opened the PDF's one at a time and named them-quite time consuming but better than looking for what I wanted every time. I have a hardcopy of the engine manual.

[cornemuse]

Mike D

Thanks

[cth350]

for the old service disks that had *.pdf files, there's an alt index published...
https://www.mercedeslist.com/serviceindex.html

But it's not helpful for the R129 disk or any of the other items that covered the 90s models.

-CTH
