1990 300CE. I have two fuses (#B and #5) that keep getting warped soon after I put new ones in. Any ideas why this is happening? There is also a hole in the side of the fuse box that looks like it was scrapped out and not melted.

There are the original types of fuses that have a ceramic body and solid metal connector. Then there are the cheap knock-offs that have a plastic body and a cheesy plated connector. If you are using the knock-offs, I would first suspect they are the problem, assuming no shorts in the affected circuits.

__________________

Don't Chrome them; polish them

Warped or blown? If not blown, then test that they blow at the recommended amperage. If they don't, then find a set that do and reinstall. If the new ones don't blow, then close it up and call it a day.

__________________

1990 190E 3.0L

This…

__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!

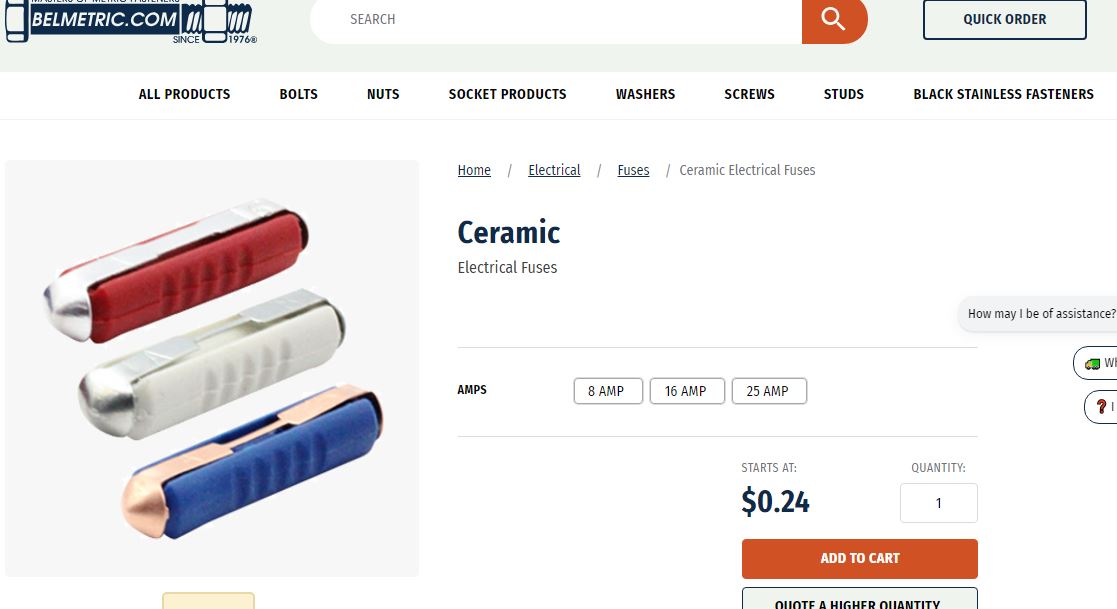

Ceramic fuses are getting harder to find.

__________________
1979 Black on Black, 300CD (sold), 1990 Black 300SE, Silver 1989 Volvo 780, 1988 300CE (vanished by the hands of a girlfriend), 1992 300CE (Rescue).

Just get the plastic ones from Amazon and reuse the ceramic body.....I personally have not had any issue finding the ceramic ones.

__________________

1990 190E 3.0L

Didn't know you could do that, will start collecting them when I visit the JY.

__________________
1979 Black on Black, 300CD (sold), 1990 Black 300SE, Silver 1989 Volvo 780, 1988 300CE (vanished by the hands of a girlfriend), 1992 300CE (Rescue).

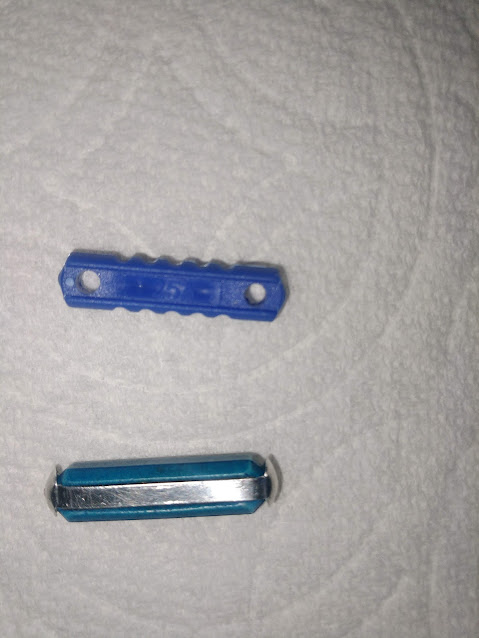

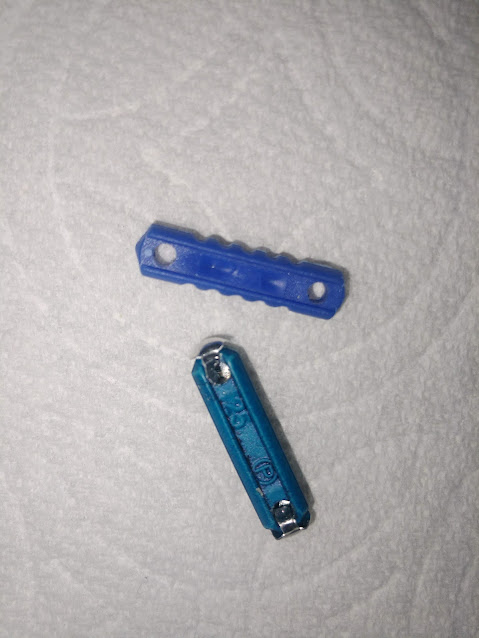

Yep! I order the plastic ones from Amazon and found that they tend to melt with heat where the strip will sink into the plastic at the ends until there is deformed plastic touching the copper contacts instead of the fuse strip. Again, I've had no issue finding these fuses online for cheap.

Attached Thumbnails



__________________

1990 190E 3.0L
