#1
11-08-2009, 01:40 PM
|
||||
|
||||
Part ID: M117.986
http://www.********.com/catalog/moreinfo.php?pk=482380
Injector seals for WHAT? ******** lists them fir my car, I ordered injector seals and got these. I thought they were wrong, because they didn't have that cup shape like most do. an Updated version? 1978 450 SEL 4.5 CIS Kjet
__________________
RIP: 80 300SD RIP: 79 450SEL 2002 E430 4matic (212,000km) 2002 ML500 'sport'  ____________________________ FACEBOOK: PANZER450
|
|
#2
11-08-2009, 01:53 PM
|
|||
|
|||
|
I just went through the rock island part selection process, and it looks like you ordered (and I quote):
"1978 MERCEDES-BENZ 450SEL 4.5L 4520cc V8 MFI : Fuel/Air : Fuel Injector O-Ring" ...instead of injector seals. Plus, the O-rings should be much thinner, so you probably recieved the wrong parts as well. What you're looking for are these: http://catalog.peachparts.com/ShopByVehicle.epc?q=&yearid=1978%40%401978&makeid=63%40%40MERCEDES+BENZ%40%40X&modelid=6271%3AMBC%7C1536%3AED%7C10000066%3AEB%7C621%40%40450SEL&keyword=injector&subcatid=P:240624@@Fuel+Injector+Seal&mode=PA
__________________
A.S.E Tech A1,A6,A7,A8 & MVAC 609 + EPA 608 Unless stated otherwise, any question I ask is about my greymarket 1985 380SEL.
|
|
#3
11-08-2009, 02:25 PM
|
||||
|
||||
|

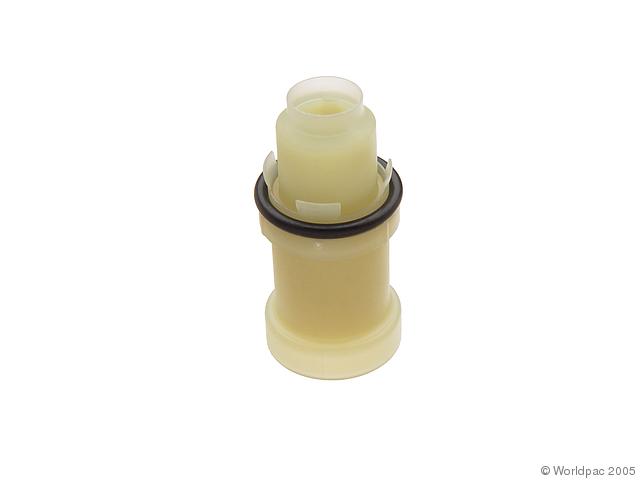

First photo is the injector holder with O-ring

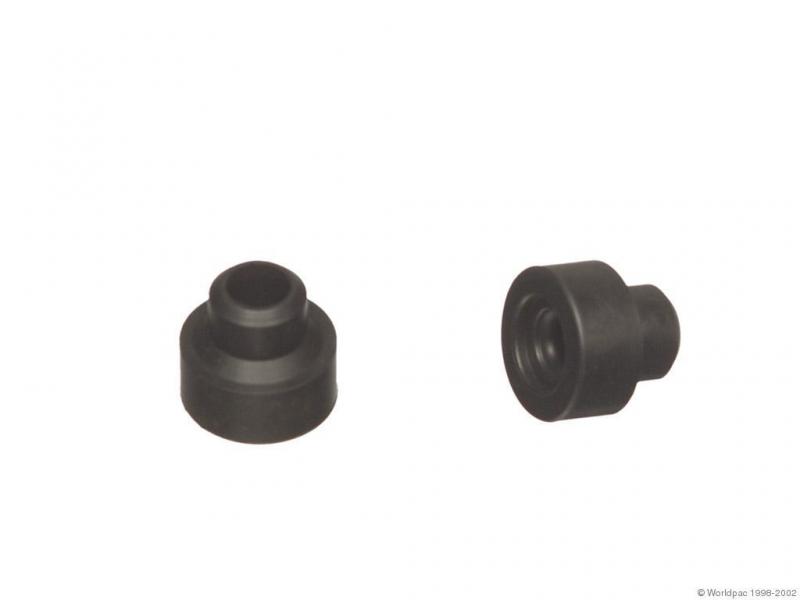

Second photo is the injector 'seal' Third photo is the O-ring separate from the holder I have the fat little O-ring that rock auto lists. since the three pics are ALL of the components needed to do the injectors, The logical assumption is that those fat little O-rings are aftermarket injector seals. they seat tightly on the injector and inside the holder. These parts and the fat O-rings I have are all K-jet parts. D-jet seals are TOTALLY different.
__________________
RIP: 80 300SD RIP: 79 450SEL 2002 E430 4matic (212,000km) 2002 ML500 'sport' ____________________________ FACEBOOK: PANZER450
|
|
#5
11-08-2009, 07:50 PM
|
||||
|
||||
|
no, it's the wrong part. I have a handful of those mistakes too.
They're the cheap version of that black cone. Get the right part. Thx -CTH
|
|
#6
11-08-2009, 08:26 PM
|
||||
|
||||
|
Yeah, the black fat O-rings didn't do anything. They seat on the injector real nice, but once in the holder there's nothing to hold down the injector after it's installed. Into my rubber parts box they went.
Because I didn't replace any of the injector parts, except the injector holder O-rings, I expected to have all my vacuum leaks there. I was right, all but three injectors surge when I spray them, I order the RIGHT parts tomorrow. I just hope I'm not going to need to replace the holders, because that turns a 16$ job into a $80 job, and I don't think there's anything wrong with the holders as they are.
__________________
RIP: 80 300SD RIP: 79 450SEL 2002 E430 4matic (212,000km) 2002 ML500 'sport' ____________________________ FACEBOOK: PANZER450
|
 |
