DIY Keyless Lock - 85 300SD

Here is how to install a keyless lock/unlock system for around $25 and in about one hour. I hunted through forum to find detailed instructions on how to do this on my model car, and only found bits and pieces, so here goes. This will only work on those cars that will lock and unlock all doors from the trunk (later SD's, from what I understand). This makes this so easy because everything you need to do is in the trunk (no messing with the doors or actuators).

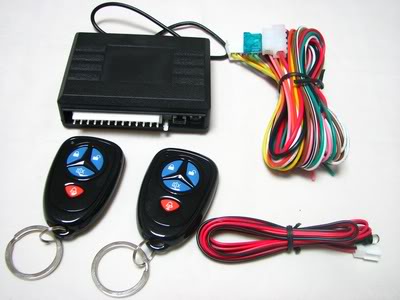

1) Purchase cheap unit from eBay. Mine came from China and was about $25. It is imperative that the unit have a signal delay for pneumatic operation. Search listing for work pneumatic, and if not there, don't buy.

2) Locate air pump in trunk. It sets next to spare tire and is easily accessible by removing a cover that is held in place with a couple of screws.

3) Remove the jumper on the wireless module for the pneumatic delay option to allow the 3.5 second hold that the pump will be looking for.

4) Unplug power from pump just to eliminate any chance of shorting something (it is the smaller plug with red and brown wires). You will need to splice the keyless unit into one of the wires (I did the green one which goes to the paassenger door). You will also need to pick up power and ground signals which can come from the red (12V) and brown (ground) wires that feed power to the pump. Follow the schematic I show in the pic. This took me the longest as I could not locate a schematic anywhere that was a perfect match for what I needed. Use the hand drawn one on the right side.

5) I placed the unit right on top of the rubberized pump holder, and underneath the trunk spare tire cover. It fits nicely in there, and you can secure it using some duct tape (or something more elegant). You can trim back all the wires in the unit that aren't needed and it makes for a pretty neat install.

6) Mine came with a blue flashing LED that flashes when the car is locked. I ran that wire up into my taillight, on the clear lens, and it looks really cool at night, and let's you know things are locked up. Takes about 2 minutes.

That's it. Of course, there are several wire connections you need to make using your favorite methods, but it is a pretty clean install.

Some tips:
-I tried to use some scotch connectors from Harbor Frieght for the splicing. The concept is cool, but in practice I was not getting very good connections, so I had to remove these and just go with butt end connectors. Soldering and heat shrink would probably be better.

-If you find things don't work, it might be a bad connection, and you just have to use a multimeter and start looking for continuity and proper ground and power voltage at the proper location on connectors. Took a little while to resolve my bad connections. Do it right the first time and it will save you time.

-The top three wires in the schematic are used for unlocking. The bottom three are for locking. The system requires a ground signal to lock, and 12V to unlock. The three wires merely route either a 12V signlal or a ground signal to cause the pump to have pressure or suction.

-In theory, you could probably splice into the yellow wire (goes to trunk lock switch), or blue wire (goes to driver's door), but I used the green one.

-When you are done, you should still be able to use the key to lock/unlock all the doors, as long as that worked before installing the unit.

Hope this helps someone out there, it would have saved me a couple of hours if I knew before what is in these instructions. Thanks to member locry for the idea to do this from this thread (Door Locks, Vacuum, and Ignorance, 300SD) and thanks to member ah-kay for assistance as well.

Attached Thumbnails
DIY Keyless Lock - 85 300SD-keyless2.jpg   DIY Keyless Lock - 85 300SD-keyless4.jpg   DIY Keyless Lock - 85 300SD-150228.jpg

Last edited by treiberg; 07-06-2010 at 03:09 PM.
Reply With Quote
  #2
Old 07-02-2010, 09:29 AM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,915
this should work on all SD 126 vehicles, and any 124's as well.
Reply With Quote
  #3
Old 07-02-2010, 10:55 AM
noah brinkman

Join Date: Mar 2010
Location: Pontiac IL.
Posts: 99
thanks for the info I wanted to do this on my 300 SDL just to "bring it up to date"

and maybe save alittle wear and tear on my $22 key

where did you get those benz key fobs did they come with your "kit"
Reply With Quote
  #4
Old 07-02-2010, 11:28 AM
TX76513's Avatar
Platinum Member

Join Date: Apr 2003
Location: Brandon, Mississippi
Posts: 5,209
Nice - thank you.

Who was the seller? I can't find anything in that price range
__________________
BENZ THERE DONE THAThttp://www.peachparts.com/shopforum/...c/progress.gif
15 VW Passat TDI
00 E420
98 E300 DT
97 E420 Donor Car - NEED PARTS? PM ME!
97 S500
97 E300D
86 Holden Jackaroo Turbo D
86 300SDL
(o\|/o)
Reply With Quote
  #5
Old 07-02-2010, 11:52 AM
Registered User

Join Date: Sep 2007
Location: Bakersfield
Posts: 216
Here is the one I bought: http://cgi.ebay.com/ebaymotors/ws/eBayISAPI.dll?ViewItem&item=250613995564&viewitem=

Do a search with "remote keyless pneumatic" as the words, and check off "include title and description" when doing your search. You will find some for as low as $15! Do NOT include the word Mercedes because these are generic units and will not list any compatibilities with any particular models. Here is another example. These are all Chinese units and the wiring appears to be the same on almost all of them.

http://cgi.ebay.com/ebaymotors/AUTO-2-FOB-REMOTES-UNIVERSAL-CAR-KEYLESS-ENTRY-SYSTEM-_W0QQcmdZViewItemQQhashZitem2a084fe3efQQitemZ180528079855QQptZMotorsQ5fCarQ5fTruckQ5fPartsQ5fAccesso ries
Reply With Quote
  #6
Old 07-02-2010, 12:39 PM
TX76513's Avatar
Platinum Member

Join Date: Apr 2003
Location: Brandon, Mississippi
Posts: 5,209
Thank you for the clarification.
__________________
BENZ THERE DONE THAThttp://www.peachparts.com/shopforum/...c/progress.gif
15 VW Passat TDI
00 E420
98 E300 DT
97 E420 Donor Car - NEED PARTS? PM ME!
97 S500
97 E300D
86 Holden Jackaroo Turbo D
86 300SDL
(o\|/o)
Reply With Quote
  #7
Old 08-10-2010, 09:33 AM
Registered User

Join Date: Sep 2007
Location: Bakersfield
Posts: 216
Just reporting back, did this keyless opener about a month ago on my 85 300SD, and I have been very happy with the results. It is so nice to just a hit a button to lock and unlock.

I plan on doing this on my 92 300E soon (it is a similar system with a dedicated pump for the door lock system). Also would like to do it on my 240D, although that will require slightly more work as an actuator at the driver door will be required. I am replacing the master switch there because of a slight leak. Then I just need to find an atuator to move that switch back and forth in conjuntion with a keyless module. Will report back on this later.
__________________
Treiberg's Collection: 1981 240D, 1985 300SD, 1992 300E, 1997 E300D, 2005 C230K
Reply With Quote
  #8
Old 08-10-2010, 09:47 AM
Registered User

Join Date: Jun 2010
Location: MD
Posts: 202
Quote:
Originally Posted by treiberg View Post
Here is the one I bought: http://cgi.ebay.com/ebaymotors/ws/eBayISAPI.dll?ViewItem&item=250613995564&viewitem=

Do a search with "remote keyless pneumatic" as the words, and check off "include title and description" when doing your search. You will find some for as low as $15! Do NOT include the word Mercedes because these are generic units and will not list any compatibilities with any particular models. Here is another example. These are all Chinese units and the wiring appears to be the same on almost all of them.

http://cgi.ebay.com/ebaymotors/AUTO-2-FOB-REMOTES-UNIVERSAL-CAR-KEYLESS-ENTRY-SYSTEM-_W0QQcmdZViewItemQQhashZitem2a084fe3efQQitemZ180528079855QQptZMotorsQ5fCarQ5fTruckQ5fPartsQ5fAccesso ries
Ha! The way the buttons are configured on the FOB make it look like the MB logo. Perfect!
__________________
-Louis

'87 300D Anthracite
Reply With Quote
  #9
Old 08-10-2010, 10:21 AM
Registered User

Join Date: Sep 2007
Location: Bakersfield
Posts: 216
Quote:
Originally Posted by LoosBenz View Post
Ha! The way the buttons are configured on the FOB make it look like the MB logo. Perfect!
Yeah, that was just kind of luck, because I didn't notice it until I got the unit installed.
__________________
Treiberg's Collection: 1981 240D, 1985 300SD, 1992 300E, 1997 E300D, 2005 C230K
Reply With Quote
  #10
Old 08-10-2010, 10:28 AM
thayer's Avatar
Mercerator

Join Date: Oct 2008
Location: Mt. Airy, NC
Posts: 891
I got a unit on ebay that included the 4 electric actuators. So worth it. I deleted the vacuum actuators because the price of the electric deal was so low. I went in and replaced the whole system. So nice.

I admit, the electronic "click" is not nearly as sexy as the "shoop" of the vacuum locks.

All in all, the cost to benefit ratio of this job makes it the least expensive most beneficial upgrade I know of for this car(126).

__________________

77' 300D, "Cartman" SOLD @ 150K (didn't know what I had)
83' 300SD, "The Superdon" 325k+ @ 28mpg
95 E320 wagon, "Millennium Falcon" 231k+ @ 24 Mpg
95 E300D, "Sherley" 308k @ 33.69 Mpg, currently anticipating a head
99 Suzuki Intruder "Trudy" @ 45 mpg
Reply With Quote
