How To ID Your Turbo 617.952 300 W123

I had a little trouble looking through the forum trying to figure out what kind of turbo I had. Here's a quick instructional.

This is where you'll find the ID label for a Garrett turbo. The KKKs are different. I removed the U-bend and air filter to get a good look.

The first image locates the turbo looking from the front of the car.

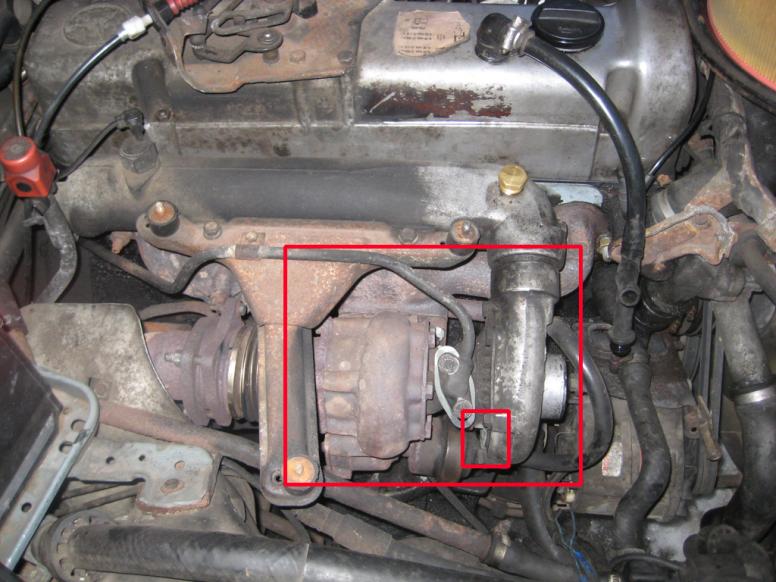

The second image locates the turbo from the passenger side. The smaller red box locates the label itself. It will probably need cleaning.

The final image is a closeup of the turbine housing where the label is. The label is pretty hard to read while in the car. I took a bunch of pictures with a digital camera until I got one that I could read. One of those little dentist's mirrors would have been handy. This particular car, '84 300TD Turbo, had a Garrett T3 465228-3, also referenced as TA0301.

I had to locate the turbo type so I could order a rebuild kit. I rebuilt the turbo using a full kit ($100) from G Pop Shop. Definitely a DIY job. It did not require rebalancing as long as you follow the instructions carefully and make sure everything is lined up exactly the same as when it came apart.

Of course, I only have a few hundred miles on the turbo so I'll update if it explodes or something.

Attached Thumbnails
How To ID Your Turbo 617.952 300 W123-turboid1.jpg   How To ID Your Turbo 617.952 300 W123-turboid2.jpg   How To ID Your Turbo 617.952 300 W123-turboid3.jpg
__________________
'84 Euro 300TD Turbo, 192K
Reply With Quote
  #2
Old 02-24-2010, 08:21 PM
TnBob's Avatar
Registered User

Join Date: Dec 2009
Location: Shelbyville, Tn
Posts: 1,907
Your explanation takes the 'why we soo dislike haynes, chilton ect' type manuals. Thanks for the instant tutorial.

__________________
1985 300D 198K sold
1982 300D 202K
1989 300E 125K
1992 940T

"If you dont have time to do it safely, you dont have time to do it"

"The democracy will cease to exist when you take away from those who are willing to work and give to those who would not."
