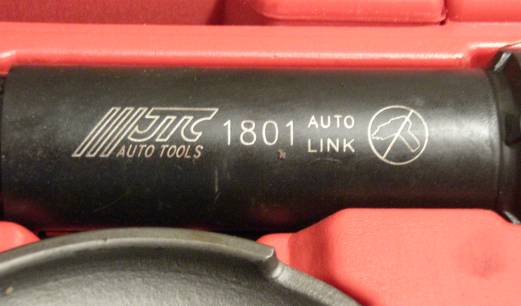

I bought one of the JTC 1801 spring compressors so I could replace the LCA bushings (and lower ball joints while I'm in there already)... but I can't get the top through the hole in the body of the car so it can seat properly on the top plate.

Has anyone else had this problem?

It is very close, an extra 2-3mm clearance would be all that's needed.. What am I supposed to do, grind the hole in the car 2-3mm larger or something?

Attached Thumbnails



__________________
'83 300DTurbo http://badges.fuelly.com/images/smallsig-us/318559.png

Broadband: more lies faster.

Yes. That's what some have done for the early version of the Sir Tools spring compressor, when used on a 123 chassis. The later version ST is supposed to clear the hole due to a slight re-design. The Klann spring compressor fits.
There are now several different clones of these two original manufacturers. The JTC must have cloned the Sir Tools version; ZDmac (or some such) seems to have cloned the Klann. I've got the ZD clone and friends have used it on the 123 chassis with no problem. The archive has a few posts of guys lightly "whittlin'" the hole wider with no ill effects. They all seem to fit on the 126.
Dave Morrison knows the different brands well and can steer you right.

__________________
The Golden Rule

1984 300SD (bought new, sold it in 1988, bought it back 13 yrs. later)

Could you snap a pic of where the problem is at the spring? I've been eye balling that spring compressor.
I'm actually hopeful I can find somebody around with a loner.....

__________________
Jimmy L.
'05 Acura TL 6MT
2001 ML430 My Spare

Gone:
'95 E300 188K "Batmobile" Texas Unfriendly Black
'85 300TD 235K "The Wagon" Texas Friendly White
'80 240D 154K "China" Scar engine installed
'81 300TD 240K "Smash"
'80 240D 230K "The Squash"
'81 240D 293K"Scar" Rear ended harder than Elton John

Jimmy - you can borrow mine. I have the ZD MAK clone of Klann - worked beautifully on my 126. I have a good assortment of front end tools you can borrow as well (though I don't think the 20 ton press is going to fit in your car

PM me and I'll respond with my cell #

__________________
~shell
As of 2/2010:
2001 CLK55 0o\=*=/o0
13.6 @ 106mph
10K mi
1984 300SD
260K mi and going and going...
97 S600
46K miles
1991 Sentra SE-R (extremely dorked with)
www.se-r.net

I'll see if I can get some pictures tonight.

However, the problem is pretty simple. To use the compressor, one wedges the plates in between the coils of the spring, then inserts the telescoping "post" down, through the hole above the spring in the engine bay, through the top plate, then through the bottom plate. There are some hooks at the bottom that grab onto the bottom plate, and some detents in the top that seat in the top plate.

My problem is that the post is too fat at the top to fit through the hole in the body in the engine bay. Since it can't do that, it can't seat on the top plate.. which would make attempting to compress the spring.. well, this I think says it best..

__________________
'83 300DTurbo http://badges.fuelly.com/images/smallsig-us/318559.png

Broadband: more lies faster.

I had the same issue on my TD. Air Die Grinder to open up the hole a bit at the top of the spring perch. The spring is no where near the center so you can remove some material with no ill effect. The steel was three layers thick here so you won't be doing this with hand tools.

__________________
tgingrich
'83 300TD 282k
'83 300D 239k
'82 300SD 204k
DFW

Thanks. That's what I was thinking of doing, but I was very suprised I'd have to. So, I wanted to check with others smarter than I to make sure I wasn't missing something obvious first .

__________________
'83 300DTurbo http://badges.fuelly.com/images/smallsig-us/318559.png

Broadband: more lies faster.

would work the best, but if you don't have one, or maybe even the air to run one, then you could get it done with a 110v Dremel tool. If you use the dremel tool, make sure you don't get your hands over the air vents. If you are working it hard, and running it fast, it needs all the air cooling it can get. It is not as fast as the die grinder, but it will get it.

__________________
Junqueyardjim
Christianity, if false, is of no importance, and if true, of infinite importance. The only thing it cannot be is moderately important. C.S. Lewis



1983 Mercedes W123 240D 4 Speed 285,000 on the road with a 617 turbo, beautiful butter yellow, license plate # 83 240D INDIANA

2003 Jaguar Type X, AWD. beautiful, good mileage,
Mom's car, but I won't let her drive it!

Here's some pictures...

First is the problem -- the top of the spring compessor post doesn't fit through the hole in the body. You can see the top of the post sitting here -- the rest is sticking down inside the spring.

Second picture is a closeup of the hole in the body. You can't tell from this picture, but the heavy gauge steel of the body sticks into the hole a little. I had to grind that back flush and then enlarge the hole by about 1mm all the way around. If they had made the post 2-3mm smaller in diameter, it probably would have fit right off.

Third picture is the post in the hole upside down (that's how I was test fitting it).

Jim, I ended up using my dremel tool since I was too lazy to reassemble the car to drive it next door and borrow my neighbor's air die grinder/compressor setup. Took a little longer, ~20 min per side, and I used up a stone in the process, but its done now.

Thanks everyone for all your help.
