Home made Valve adjustment wrench info

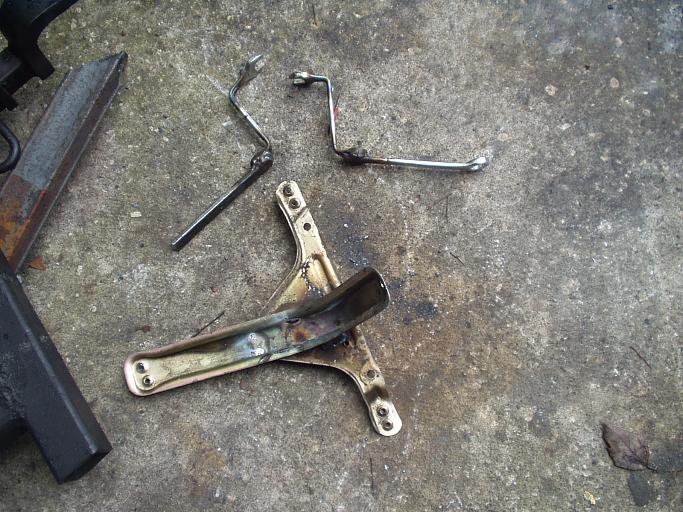

These are the valve adjusting wrenches that I made. I started with two cheep 14mm wrenches. I cut the box end off the wrenches and bent them then brazed flat stock to them. To make the third wrench I cut 1/4" off a 30mm socket then brazed that to 1/8" flat stock and then cut a 20mm slot in the end.
Hope this helps someone
Total cost was less than $10 and I have been using them for about 2 years with no problems.

Oh yea, you want the two wrenches to nest so that the upper one can pass over the lower one when you are turning them.
I just added some info on the valve spring retainer wrench. With these dimensions and the photo it should make sense.

Attached Thumbnails
Home made Valve adjustment wrench info-valve1.jpg   Home made Valve adjustment wrench info-valve3.jpg   Home made Valve adjustment wrench info-wrench.jpg   Home made Valve adjustment wrench info-valve-spring-wrench.jpg
Attached Files
File Type: doc valve4.doc (40.0 KB, 1245 views)
__________________
1983 300SD
200000miles

Last edited by Phil; 03-13-2007 at 04:52 PM.
Reply With Quote
  #2
Old 02-23-2007, 05:22 PM
300SDog's Avatar
gimme a low-tech 240D

Join Date: Jan 2003
Location: central ky
Posts: 3,602
Totally state of the art! Thank you Phil for setting the standard by which all valve adjustment wrenches oughta be judged.
Reply With Quote
  #3
Old 02-23-2007, 06:38 PM
toomany MBZ's Avatar
Registered User

Join Date: Nov 2006
Location: central Va
Posts: 7,820
Well done!
__________________
83 SD

84 CD
Reply With Quote
  #4
Old 02-24-2007, 12:59 PM
Registered User

Join Date: Sep 2005
Location: Coos Bay, OR
Posts: 212
Nicely done Phil. While I too have bent my own wrenches I had never thought to make a "hold down" wrench from a socket. Unfortunately when I down load the file it's blank. Has anyone else had this problem? I get the pop-up massage "Unable to load graphics conversion filter" for windows 97. Could you try a e-mail or ...someone know a fix.
Thanks in advance
__________________
2dieseljohn
1979 300sd (283,000+) Road Trips
1983 240D 4-speed (350,000+) Daily Driver
1967 E-TypeS1 in bits and pieces
Reply With Quote
  #5
Old 02-26-2007, 11:14 AM
Phil's Avatar
Registered User

Join Date: Dec 2004
Location: Sonoma County, California
Posts: 1,064
I just added an easier to use copy of the dimensions.
__________________
1983 300SD
200000miles
Reply With Quote
  #6
Old 03-02-2007, 12:22 PM
Registered User

Join Date: Sep 2005
Location: Coos Bay, OR
Posts: 212
Thanks

Thank you Phil -
I've been working so I have not visited in awhile. How nice to log -on and not have to look for this post. I'm off for the next few days so I'll try to make the "nut holder"
Thanks again and have a great day
__________________
2dieseljohn
1979 300sd (283,000+) Road Trips
1983 240D 4-speed (350,000+) Daily Driver
1967 E-TypeS1 in bits and pieces
Reply With Quote
  #7
Old 03-02-2007, 11:47 PM
Registered User

Join Date: Jun 2004
Location: Land O'Lakes, Fl.
Posts: 232
When I was in my teens, I worked at a Porsche/Audi dealer washing cars.

I got to watch the mechanics work on cars too. Some of them had their own specially made tools. As I looked at the wrenches above, it reminded me of some of the tools they made for special situations.

I've always wonderd this, but have never asked anyone. I'm sure there is a simple answer....

When making the tool, why was brazing used instead of welding?
__________________
1984 300D 398K-daily driver
1998 Honda Accord 102K -wife's daily driver
1991 Volvo 740 289K
2000 Toyota Corolla 143K
Reply With Quote
  #8
Old 03-03-2007, 12:26 AM
Phil's Avatar
Registered User

Join Date: Dec 2004
Location: Sonoma County, California
Posts: 1,064
.

When making the tool, why was brazing used instead of welding?[/QUOTE]

I brazed because I felt it would be strong enough and more importantly I had a torch but no arc welder at the time and it has worked fine and I like gas welding better.
__________________
1983 300SD
200000miles
Reply With Quote
  #9
Old 03-13-2007, 11:29 AM
rino's Avatar
Registered User

Join Date: Mar 2005
Location: Southern California
Posts: 553
Fantastic, Phil!!! You have made such a tremendous contribution that I hope everybody in this forum is going to realize...
I have seen similar wrenches sold for $89 and $99... Your instructions here make it accessible to all for just a few bucks... I already have old stuff I'll be making the wrenches from... it's going to cost me maybe 2 or 3 bucks altogether...

Thanks you so much!!!

Rino
__________
__________________
1979 240D, W123, 105K miles, stick, white w/ tan interior.
Reply With Quote
  #10
Old 03-13-2007, 01:37 PM
MattBelliveau's Avatar
Gotta another one...

Join Date: Jun 2005
Location: NE Ohio
Posts: 1,685
Should this be a sticky?
__________________
1989 300E 144K
Reply With Quote
  #11
Old 03-13-2007, 03:46 PM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,915
if not a stickey, perhaps the OP could rename the title of the thread to valve-wrench so the one word search we have will always find it.
John
heh, never mind, my post triggers the search!
John
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #12
Old 03-13-2007, 04:53 PM
Phil's Avatar
Registered User

Join Date: Dec 2004
Location: Sonoma County, California
Posts: 1,064
Done on the title but it doesn't show that way on the forum list, any idea how to change that?
__________________
1983 300SD
200000miles

Last edited by Phil; 03-13-2007 at 05:03 PM.
Reply With Quote
  #13
Old 03-14-2007, 01:10 AM
vstech's Avatar
DD MOD, HVAC,MCP,Mac,GMAC

Join Date: Mar 2006
Location: Mount Holly, NC
Posts: 26,915
I don't think it can be changed once replies have been posted... and it's not important anyway, due to my post having the hyphen in it, a search for "valve-wrench" always turns up this thread!
John
__________________
John HAUL AWAY, OR CRUSHED CARS!!! HELP ME keep the cars out of the crusher! A/C Thread
"as I ride with my a/c on... I have fond memories of sweaty oily saturdays and spewing R12 into the air. THANKS for all you do!

My drivers:
1987 190D 2.5Turbo
1987 190D 2.5Turbo
1987 190D 2.5-5SPEED!!!

1987 300TD
1987 300TD
1994GMC 2500 6.5Turbo truck... I had to put the ladder somewhere!
Reply With Quote
  #14
Old 11-19-2007, 08:03 PM
Registered User

Join Date: Apr 2002
Posts: 3,473
Do you find it nice that the heads point different directions? I have the factory tools, and I organized the factory tool group buy. Its a very nice job, sometimes I make tools too, when I am in a bind.

These are best looking out of many that people have shown.
__________________
Current Stable:
1994 S500 v140, 210k miles, white with grey.

Former Mercedes in the Stable:
1983 300CD Turbo diesel 515k mi sold (rumor has it, that it has 750k miles on it now)
1984 300CD Turbo Diesel 150 k mi sold
1982 300D Turbo Diesel 225 sold
1987 300D Turbo Diesel 255k mi sold
1988 300 CE AMG Hammer 15k mi sold
1986 "300E" Amg Hammer 88k mi sold (it was really a 200, not even an E (124.020)
1992 500E 156k mi sold
etc.
Reply With Quote
  #15
Old 11-20-2007, 11:24 AM
Phil's Avatar
Registered User

Join Date: Dec 2004
Location: Sonoma County, California
Posts: 1,064
Quote:
Originally Posted by omegabenz View Post
Do you find it nice that the heads point different directions? I have the factory tools, and I organized the factory tool group buy. Its a very nice job, sometimes I make tools too, when I am in a bind.

These are best looking out of many that people have shown.
By having the heads pointing in different directions it can make it easier to get on to the nuts on the valve stems but remember the valves are floating so you can turn the whole thing a bit for better access if necessary.

A note on the third wrench - After the first time I adjusted the valves on my car I have not had to use this wrench again.
